Logimove Semi-automatic

Logimove Semi-automatic

Production Management System for Upper Factories

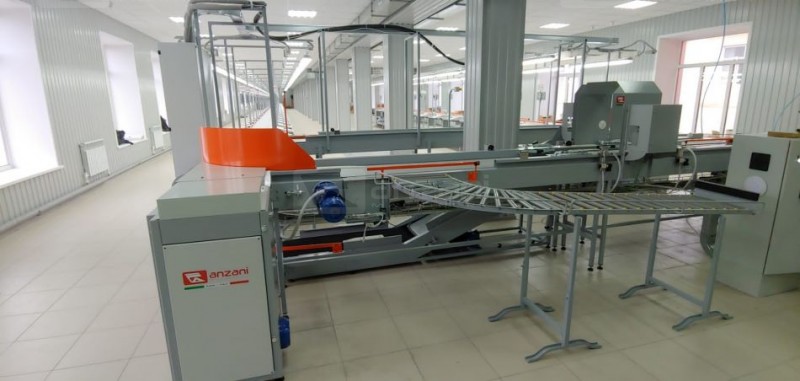

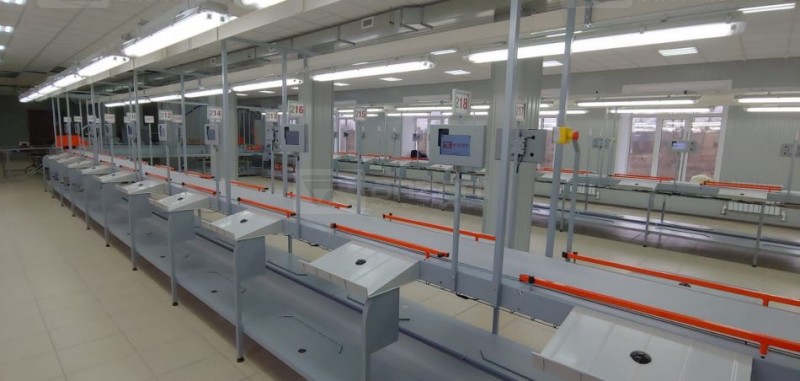

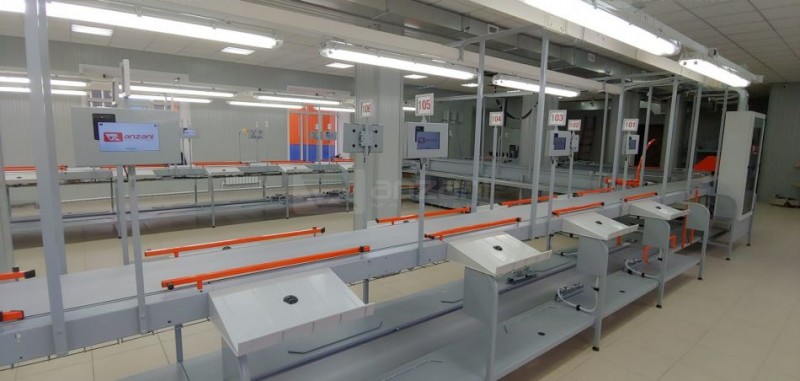

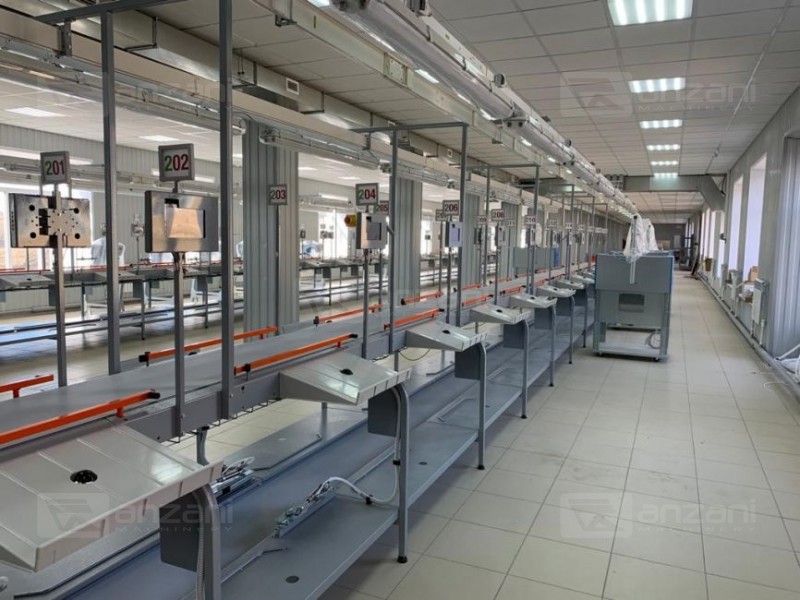

LOGIMOVE Semi-automatic is a production management system for upper factories, which provides for the distribution of boxes, equipped with bar codes, which contain the component kits to assemble the uppers. The system, automatically managed by software, knows which operator and which machine are present in each work station and which article is contained within each box, consequently it knows which operation can be carried out in each work station. The line manager loads the box at the start of the cycle, on the conveyor belt, the system autonomously delivers the box to the operator who has to carry out the first operation. Once the first operation is finished, the box is put back into circulation and sent to the workstation, where the next phase will take place, the same will happen for all phases, until the work cycle is completed and the box will be automatically unloaded out of the system. In the event that the system has to deliver a box to an occupied workstation, that is, already saturated with 2 boxes, the box to be delivered will be temporarily released from the system. Once the workstation is free, the software will inform the line manager to reload this box on the conveyor belt.

 Anzani's Surplus:

• Industry 4.0
• Great time saving
• Workstations saturation
• Control of the production time
• Never have to change the position of the stitching machines
• +20/30% Productivity increase
• Many models at the same time in production
• Zeroing of downtime
• Maximum production flexibility
• Made in Italy

  Lt Ext. Dim. (mm) Int. Dim. (mm) Base Dim. (mm)
Boxes Capacity and Dimensions 40 550x380x250 515x340x247 500x330
50 600x400x300 560x370x297 530x340
70 600x400x400 560x370x397 530x340




Get the full catalogue here: http://www.anzanimachinery.it/en/98/newsletter.html

Watch the video: https://www.youtube.com/watch?v=BKtLKiVfJNQ&t
