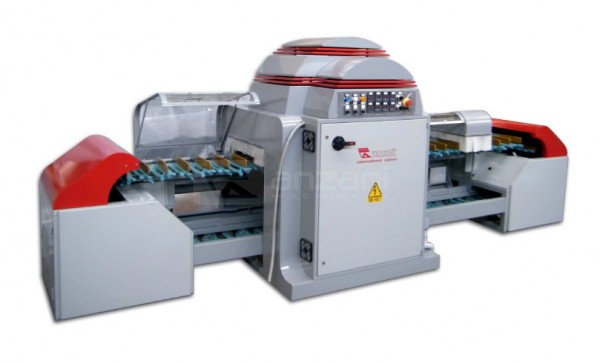

UVCD Tunnel

UVCD Tunnel

Cement Dryer with NIR Lamps

UVCD TUNNEL is a glue dryer, which carries out, for shoes, boots and relative soles, the functions of fast drying and fast reactivation of glue,both solvent and water based. Uvcd Tunnel allows to place on the conveyor in alternation the shoe and the relative sole, giving a separate treatment in the chamber, with both infrared NIR lamps and hot forced air. On request, it's possible to add, at the end of the conveyor, a flash that reactivates again the glue on the shoe and on the sole, in case of cooling of the glue, because of delays in the sole laying phase. Uvcd Tunnel differs from Uvcd Tunnel Conveyor because it makes 1 cementing instead of 3 in the same machine.

         Anzani's Surplus:

  • Very fast drying
  • Great time saving
  • Great energetic saving
  • More efficient production
  • Great results in the bonding tests
  • Excellent quality of the final result
  • NIR infrared lamps system
  • System for heat anti-loss
  • Separate treatment (shoe-sole)
  • Suitable for both solvent and water based glues
  • Suitable for any type of footwear
  • Made in Italy



Technical features
Output in 8 hours Prs 1100 with single conveyor 2200 with double conveyor
Rated Power Kw 12 23
Average Power Kw 5,5 10
Dimensions Mn 4450x1230x1700 4450x2080x1700



Get the full catalogue here: http://www.anzanimachinery.it/en/98/newsletter.html
